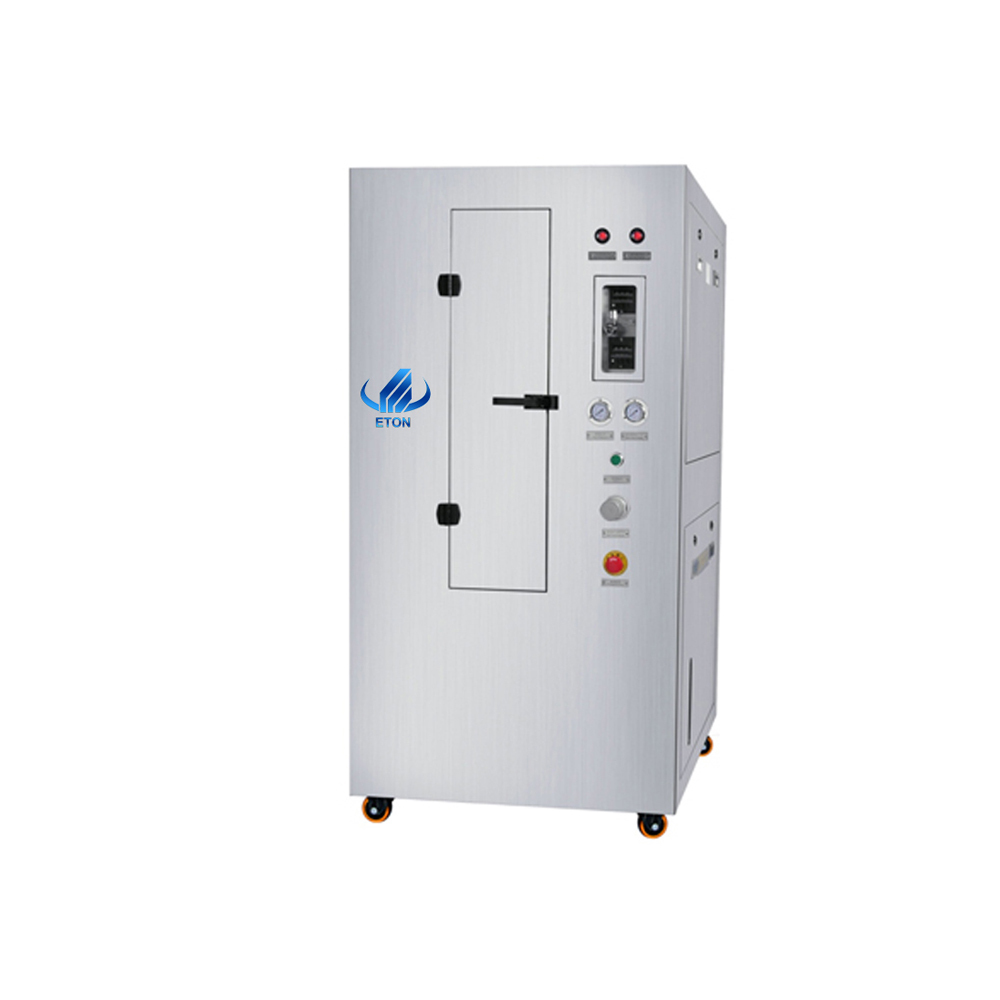

Automatic SMT Stencil Cleaning Machine for SMT Line
Model: ET-SCM750
The SMT stencil cleaning machine is designed to remove solder paste, adhesive, and other contaminants from SMT stencils. Using high-pressure spray or ultrasonic cleaning, it ensures complete cleaning without damaging the stencil mesh or frame. It is widely used in SMT production lines for maintaining stencil cleanliness and improving printing quality.
Machine Features
|
Machine Details
|
Applicable steel mesh size |
Max 750mm(L) ×750mm(W) × 40mm(H) |
|
Cleaning fluid capacity |
Max 40L (Compatible with both solvent and water-based cleaning fluids) |
|
Cleaning method |
360° double-sided spray boom rotation isobaric jet cleaning |
|
Drying method |
360° double-sided spray boom rotation compressed air drying |
|
Recommended cleaning time |
3-5 minutes (solder paste steel mesh) |
|
Recommended drying time |
3-5 minutes (solder paste steel mesh) |
|
filter |
Level 1 1mm filter screen - to protect the pump; Level 2 20um filter bag - to filter solid particles; Level 3 1um filter element - to filter solder paste and red glue. (Liquid circulation filtration) |
|
Gas supply |
0.5Mpa~ 0.7Mpa |
|
Gas consumption |
400-600L/min |
|
Machine weight |
About 230Kg |
|
Exhaust port size |
Φ120xH30mm |
|
Machine size |
800mm(L)×950mm(W)×1630mm(H) |
|
Model |
ET-C600 |
|
Steel frame structure, rail length |
L=600mm |
|
Width adjustment range |
50～350 mm |
|
PCB size |
600*350 mm |
|
Dimension(mm) |
600*660*950MM |
|
Weight(kg) |
30KG |
|
Transmission height |
900±30mm |
|
Transmission |
4MM flat belt conveyor |
|
Speed |
25-1000mm/min |
|
Power supply voltage |
Single phase 220v 50/60HZ |
|
Control |
Industrial control panel |
|
Transmission Direction |
Single (left → right ) |
|
One section of control, two Sensors |
|
Application
Suitable for different industry, like:
- Consumer electronics：Mobile phones, tablets, TVs, smart watches, headphones, etc.
- Computers and communication equipment：Motherboards, network cards, switches, 5G communication modules, etc.
- Automotive electronics：Automotive LED lights, control modules (ECUs), camera modules, etc.
- Medical electronic equipment：Medical monitoring equipment, portable diagnostic instruments
- Industrial control and power equipment：PLC controllers, electric meters, industrial control boards, etc.
- LED lighting and display：DOB light source boards, LED modules, lamp bead mounting
