Feeder Maintenance – The Backbone of Pick-and-Place Efficiency

Ask any SMT line supervisor about their biggest headache, and feeders will be near the top of the list. Feeders are the most numerous moving parts on a pick-and-place line. A typical machine may have 80-120 feeder lanes, each with its own tape advancement mechanism, cover tape peel system, and pickup position. When feeders work well, the line runs smoothly. When feeders fail, nothing works. Yet feeders are often maintained reactively – only after pick failures spike or components start skewing. This article provides a practical guide to feeder maintenance, covering mechanical and electronic feeders, common failure modes, cleaning procedures, and calibration. A disciplined feeder maintenance program can reduce pick failures by 50-80% and extend feeder life by years.

Keywords: feeder maintenance, SMT feeder, tape feeder, pick failure, feeder calibration, cover tape peel, electronic feeder, sprocket wear.

Why Feeders Are Critical

The pick-and-place machine can only place components that are presented correctly. The feeder's job is to:

• Advance the tape precisely to the pickup position

• Peel off the cover tape cleanly

• Present the component in a consistent orientation

• Do this tens of thousands of times without variation

When feeders fail, you see:

• Failed picks (component not present or not in correct position)

• Skewed placements (component already rotated in the pocket)

• Component damage (bent leads from improper presentation)

• Machine stops (operator intervention required)

A single bad feeder can stop an entire line. Yet feeders are often treated as "fit and forget" until they cause a problem.

Types of Feeders

Mechanical Feeders

Mechanical feeders use a ratcheting mechanism driven by the placement head. Each time the head picks a component, a mechanical finger advances the tape one pitch.

Advantages: Low cost, simple design, no electronics.
Disadvantages: Inconsistent advancement speed, wear-prone, no feedback to the machine.

Electronic (Motorized) Feeders

Electronic feeders have a built-in motor and controller. The machine sends a signal to advance the tape, and the feeder responds independently.

Advantages: Consistent advancement, speed control, end-of-tape detection, RFID component verification.
Disadvantages: Higher cost, requires power and communication connection.

Which is better? For high-volume or high-mix production, electronic feeders are worth the investment. For low-volume prototyping, mechanical feeders may suffice.

Common Feeder Failure Modes

Failure #1: Sprocket Wear

The sprocket is the wheel that engages the tape's sprocket holes. Over time, the teeth wear down or develop burrs.

Symptoms:

• Tape does not advance consistently (sometimes advances too far, sometimes not far enough)

• Sprocket holes torn or elongated on used tape

• Pick position varies cycle to cycle

Solution: Replace the sprocket. Sprockets are consumables – plan to replace them every 1-2 years for high-volume lines.

Failure #2: Cover Tape Peel Problems

The cover tape must be peeled off smoothly and consistently. Problems occur when:

• The peel plate is bent or misaligned

• The peel force is too high (tape tears or component is lifted)

• Adhesive residue builds up on the peel plate

Symptoms:

• Cover tape tears during peeling

• Components stuck to cover tape (lifted out of pocket)

• "Popcorning" – components ejected from tape when peel force is released suddenly

Solutions:

• Realign or replace bent peel plates

• Clean peel plates with IPA and lint-free cloth weekly

• Check peel force with a force gauge – compare to feeder manufacturer's specification

Failure #3: Component Cocking (Rotation in Pocket)

Components should sit flat and square in the tape pocket. If the pocket is too large, or if the tape is not held flat, components can rotate before pickup.

Symptoms:

• Skewed placements that follow a specific feeder

• Pick failures (component orientation outside vision system tolerance)

Solutions:

• Check tape tension – tape should be flat, not buckled

• Ensure feeder cover (top tape guide) is properly installed

• Replace worn feeders where the pocket alignment has shifted

Failure #4: Pick Position Drift

The feeder's pickup point (where the component is presented) can drift over time due to mechanical wear or loose mounting.

Symptoms:

• Pick failures concentrated on one feeder, especially for small components (0402 and below)

• Nozzle visibly off-center when descending to pick

Solution: Calibrate feeder pickup position. Many machines have an automated feeder calibration routine. For manual calibration, use a calibration jig or the machine's teach function.

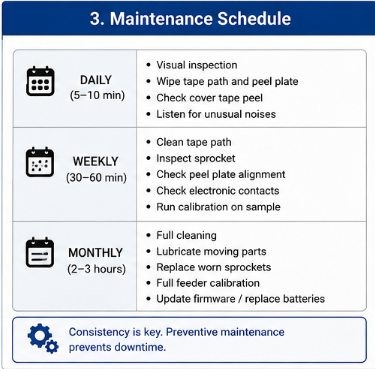

Feeder Maintenance Procedures

Daily Maintenance (5-10 minutes)

• Visually inspect active feeders – look for debris, bent parts, or loose screws.

• Wipe tape path and peel plate with a lint-free cloth.

• Check that cover tape is peeling cleanly – no tears, no adhesive residue.

• Listen for unusual noises during advancement (grinding or clicking indicates wear).

Weekly Maintenance (30-60 minutes)

• Clean tape path thoroughly with IPA and a brush.

• Inspect sprocket teeth under magnification – replace if worn or burred.

• Check peel plate alignment – adjust or replace if bent.

• For electronic feeders: check firmware version, clean electrical contacts.

• Run feeder calibration on a sample of feeders (10-20).

Monthly Maintenance (2-3 hours)

• Full cleaning of all active feeders.

• Lubricate moving parts (use manufacturer-recommended lubricant – typically a light machine oil).

• Replace any sprockets that show wear.

• Run full feeder calibration on all feeders (using machine's calibration routine or a dedicated feeder calibration tool).

• For electronic feeders: replace batteries if used for parameter storage.

Feeder Calibration

Feeder calibration ensures that components are presented at the correct pickup position. Without calibration, the nozzle may be off-center when picking, causing pick failures or component damage.

When to calibrate:

• After any feeder maintenance (sprocket replacement, peel plate adjustment)

• When a feeder is moved to a different machine (different machines may have slight coordinate variations)

• Quarterly as part of preventive maintenance

• When pick failures increase on a specific feeder

Calibration methods:

1. Machine-based calibration – Most modern pick-and-place machines have an automated feeder calibration routine. The machine picks from the feeder, measures the offset, and stores the correction.

2. Dedicated calibration tool – A separate jig with a camera that measures the pickup position and generates offset data.

3. Manual teach – The operator uses the machine's teach camera to center on the component and records the position.

Feeder Storage and Handling

Proper handling extends feeder life:

• Store feeders in a clean, dry location (dust and moisture cause problems).

• Use feeder racks or carts – do not stack feeders on top of each other.

• Cover electronic feeders when not in use (protects electrical contacts).

• Do not drop feeders – bent frames cause alignment problems.

• For long-term storage (weeks or months), remove tape and clean thoroughly before storing.

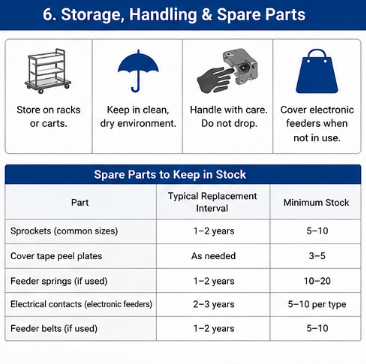

Spare Parts to Keep in Stock



Part	Typical Replacement Interval	Minimum Stock
Sprockets (common sizes)	1-2 years	5-10
Cover tape peel plates	As needed (when bent or worn)	3-5
Feeder springs (if used)	1-2 years	10-20
Electrical contacts (electronic feeders)	2-3 years	5-10 per type
Feeder belts (if used)	1-2 years	5-10

Mechanical vs. Electronic Feeders – Which to Buy?

Recommendation: If you run more than 10,000 placements per day or change over more than twice per shift, electronic feeders will pay for themselves in reduced downtime and higher quality.

Troubleshooting Feeder Problems Quickly

Conclusion

Feeders are the backbone of the pick-and-place line. When they work well, production flows. When they fail, nothing works. A disciplined feeder maintenance program – daily cleaning, weekly inspection, monthly calibration – will reduce pick failures, extend feeder life, and improve overall line efficiency.

The most common feeder problems (sprocket wear, peel plate issues, pick position drift) are all preventable with regular maintenance. Feeders are not "fit and forget" – they need care and attention.

Invest in quality electronic feeders if your volume justifies it. Calibrate regularly. Keep spare sprockets and peel plates in stock. And train your operators to spot problems before they cause line stops.

A feeder that costs $200-$800 is protecting components worth thousands of dollars per hour. Treat it that way.
